Single Part Nickel Paste Dispensing Machine

Application : Nickel paste (thermal fluid) dispensing on auto components

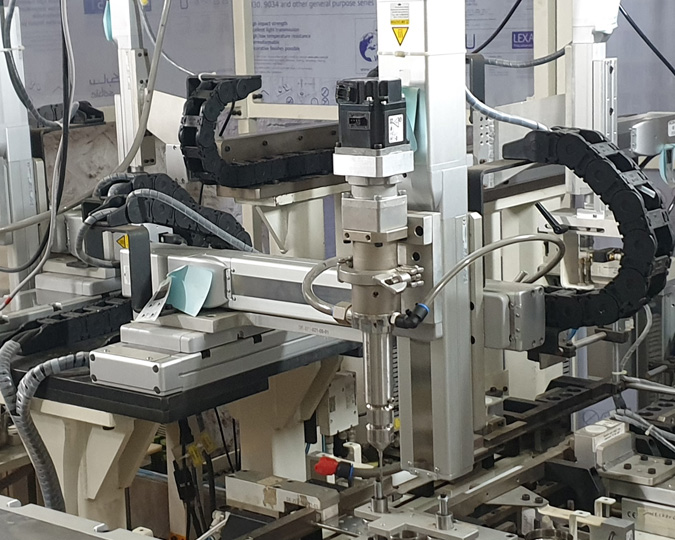

This machine is developed to meter the quantity of heating paste (Nickel paste) applied through 3 axes Cartesian robot on auto component. Ni-paste metering and dispensing is achieved through servo drive progressive cavity pump. It ensures continuity of bead with accurate flow rate

By changing the parameters, different flow rates can be achieved.

Features

Accurate dispensing through Servo driven progressing cavity valve
Pattern through 3 Axes Cartesians Robot.
Material supply through pressurized pressure pot
Auto Select Program Provision.
Meet Industrial Requirements.

Specification

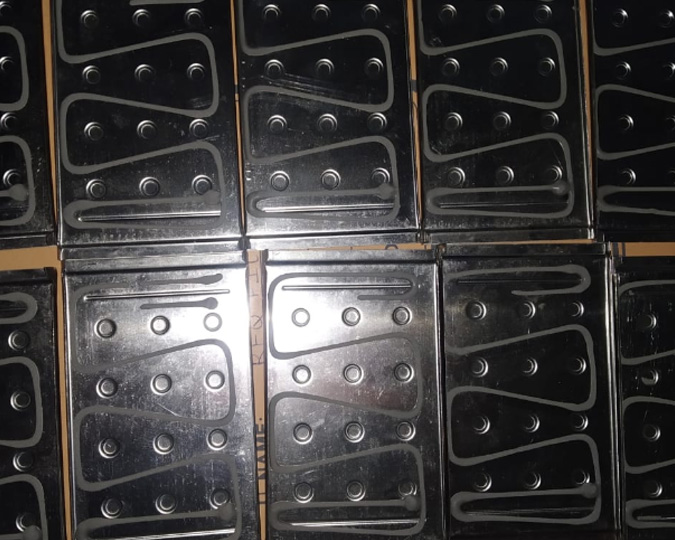

Paste dispensing on tubes within +/- 1.5 gm.
Max cycle time for job 3-5 sec.
Power supply : 3 ph 440 VAC/ 50 HZ
Air pressure : 5 Bar
