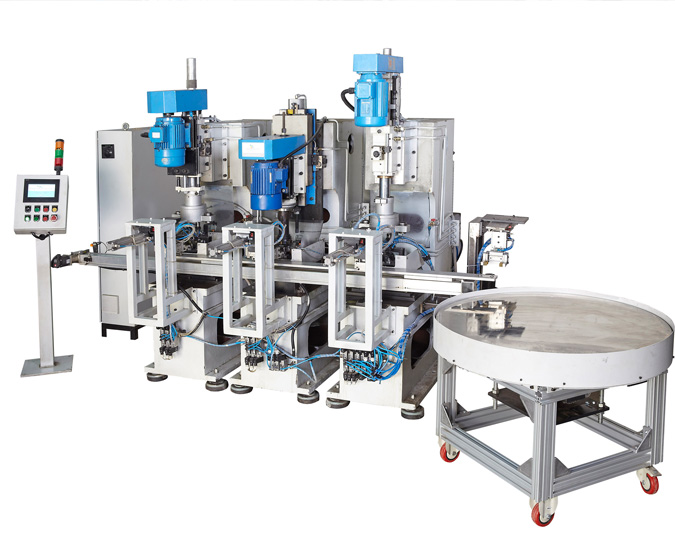

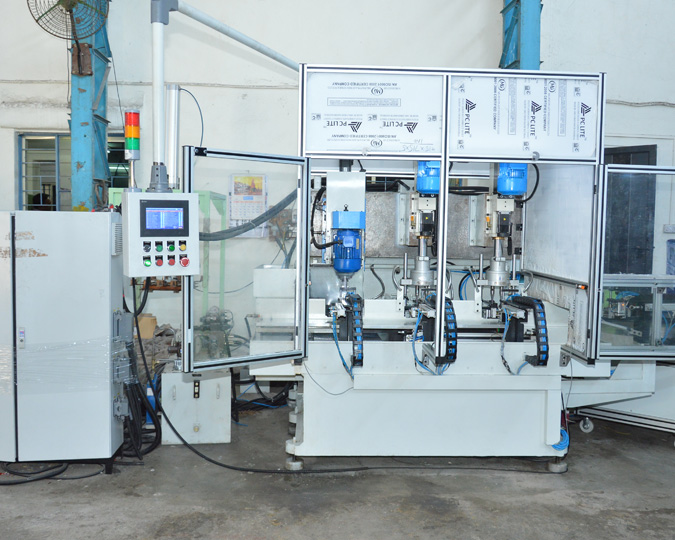

A Drilling, milling& Reaming Machine is developed to perform multiple operations like Drilling, milling& reaming on specific component. Productivity achieved through this machine within 1/10th of cycle time as compared to VMC.

Application : Bearing Cap Drilling, Milling & Reaming operation

• Design Elements : Support L –Structure, walking beam with servo slide, Component clamping & de-clamping, Pick and Place for thecomponent &programming.
• Component – Bearing Cap
• Cycle Time – 19.5 sec/component
